MSRP: $44,269.00
Operating weight,kg (lbs) 2950(6500)

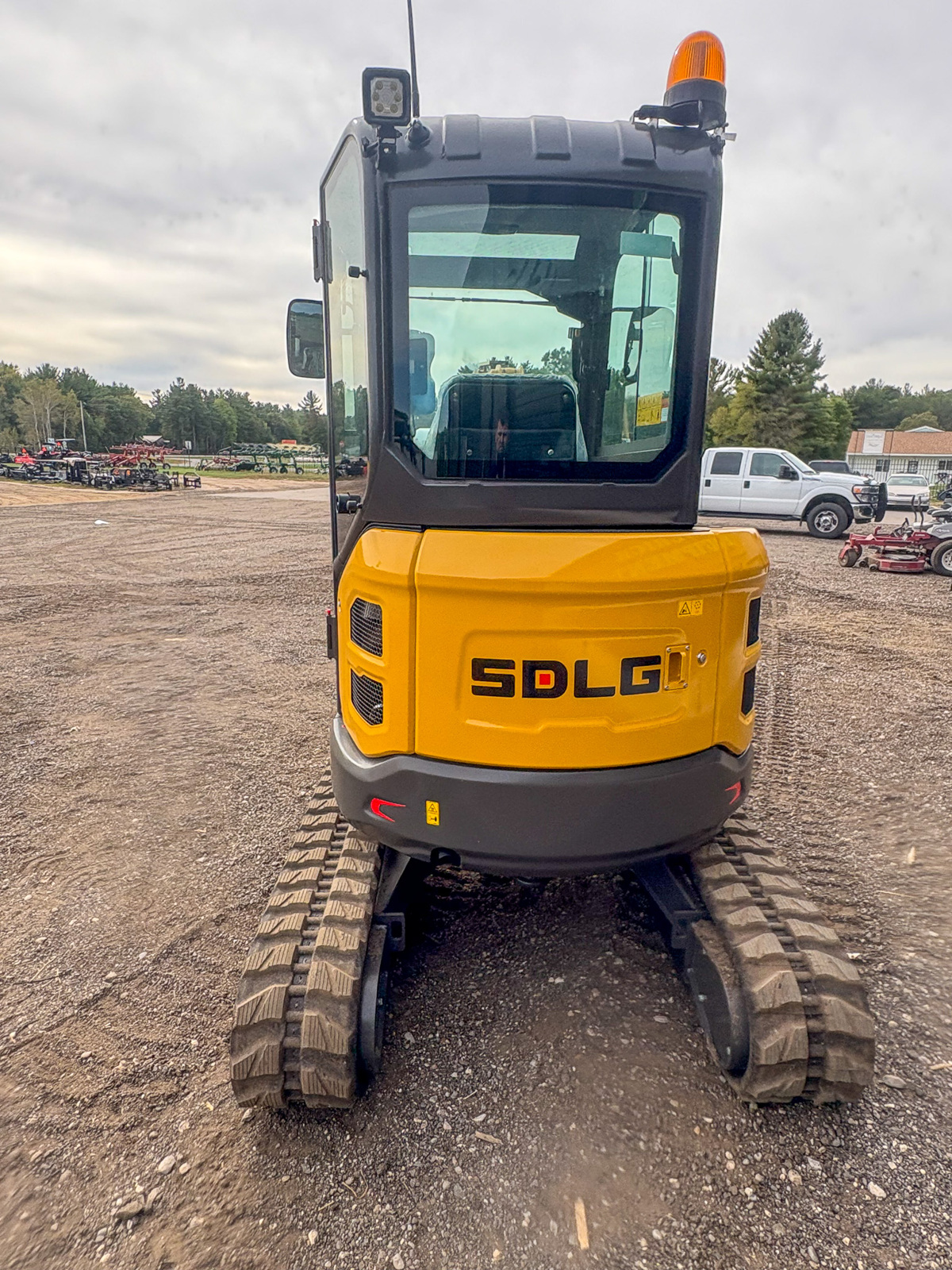

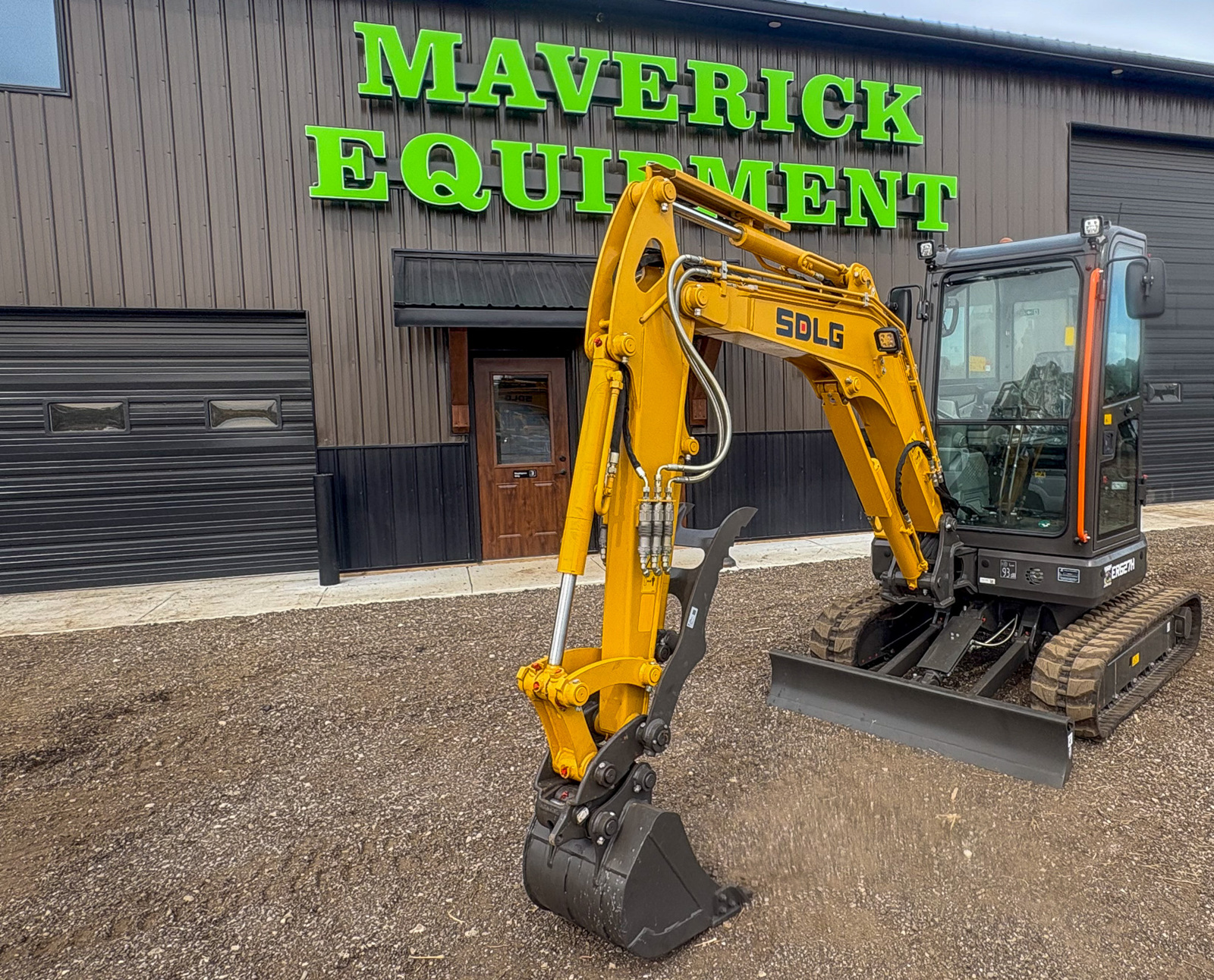

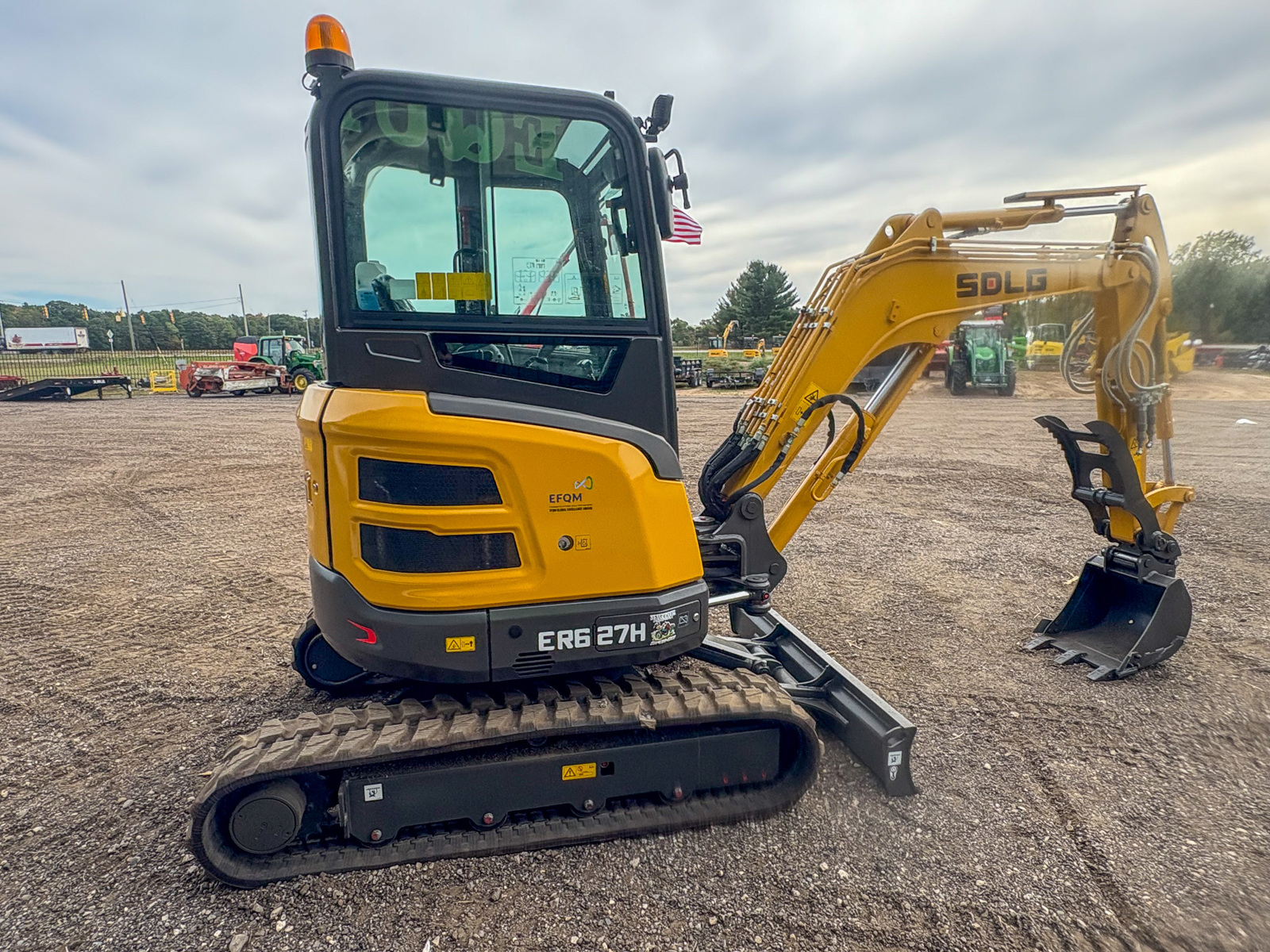

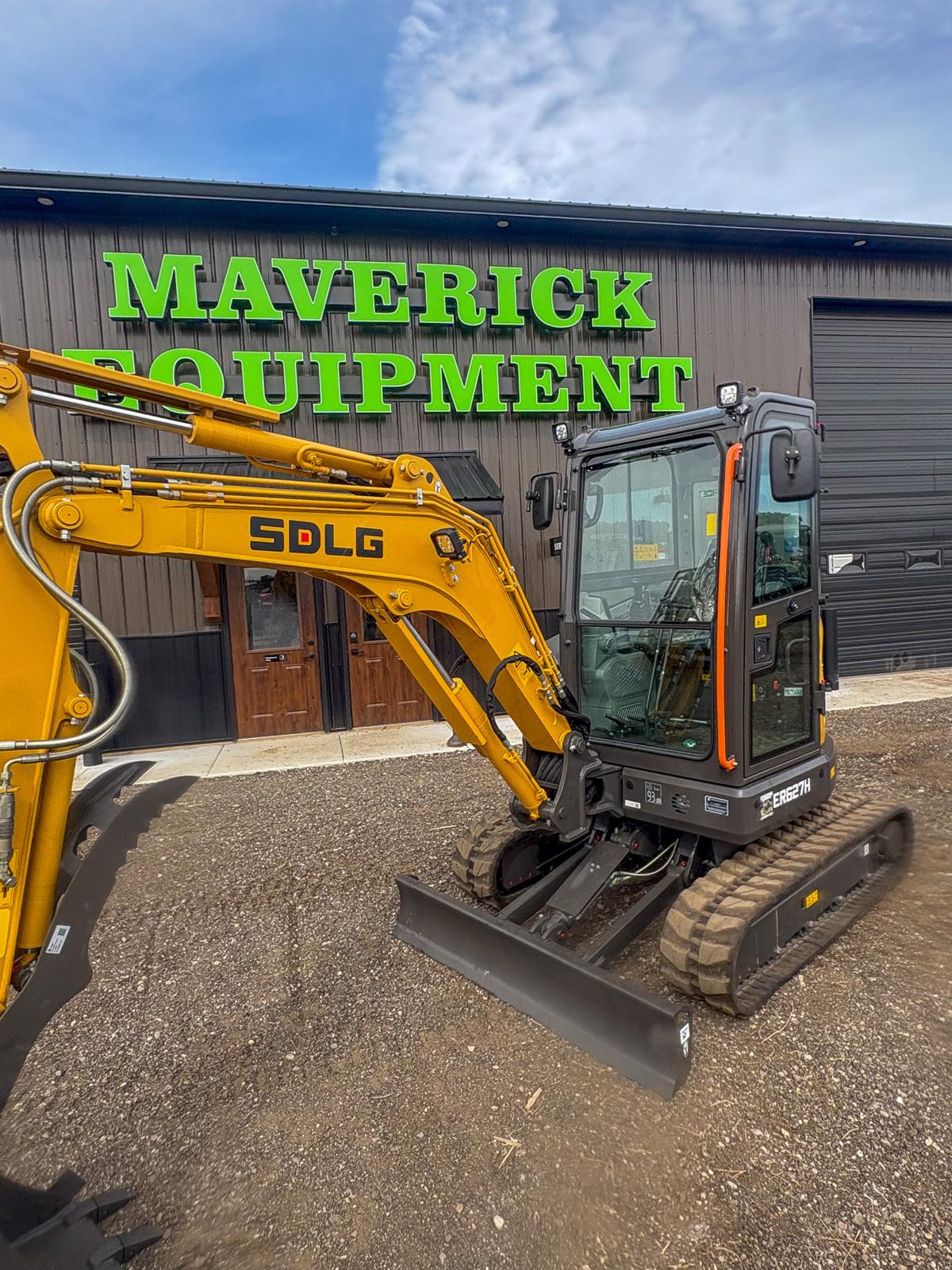

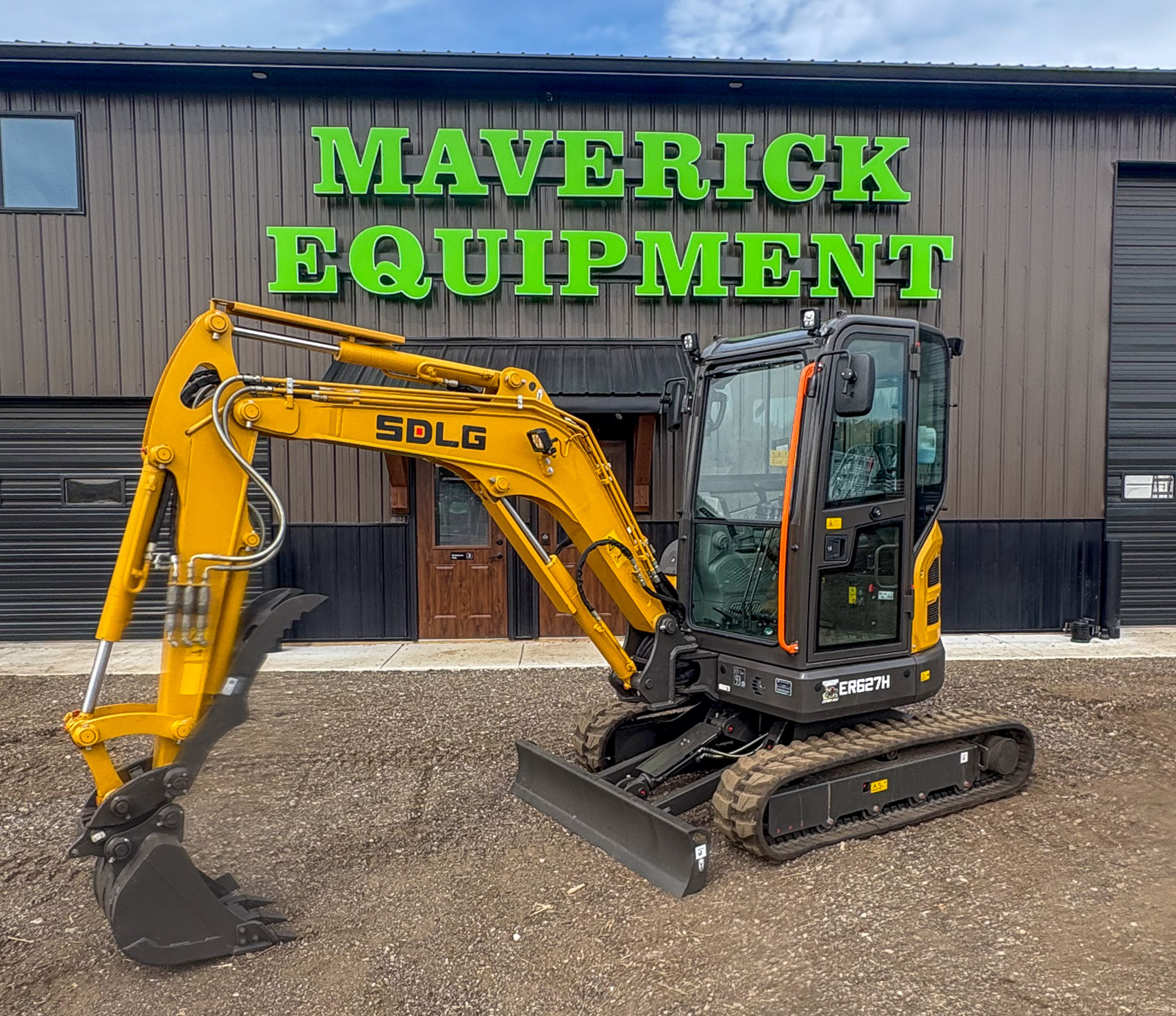

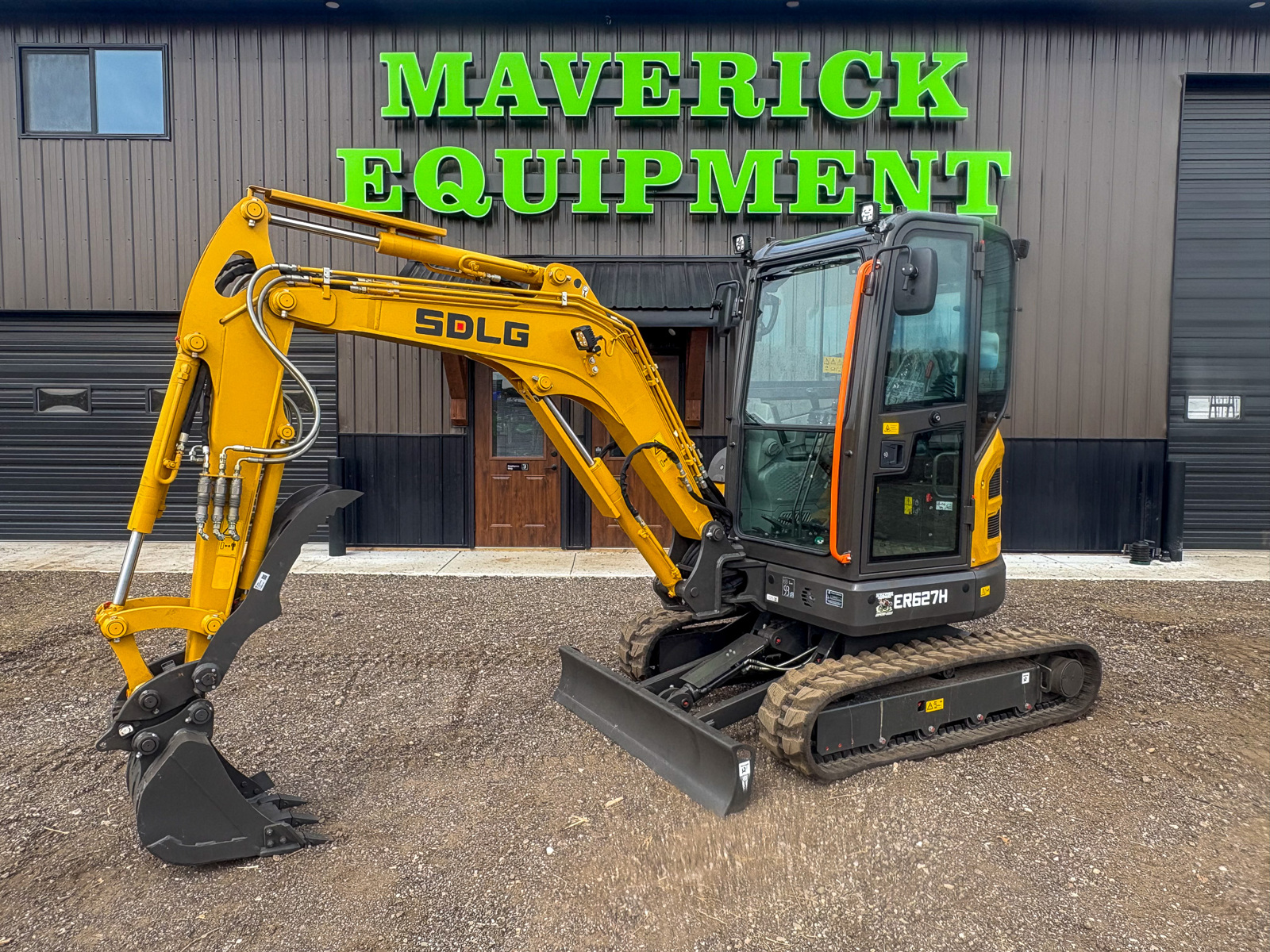

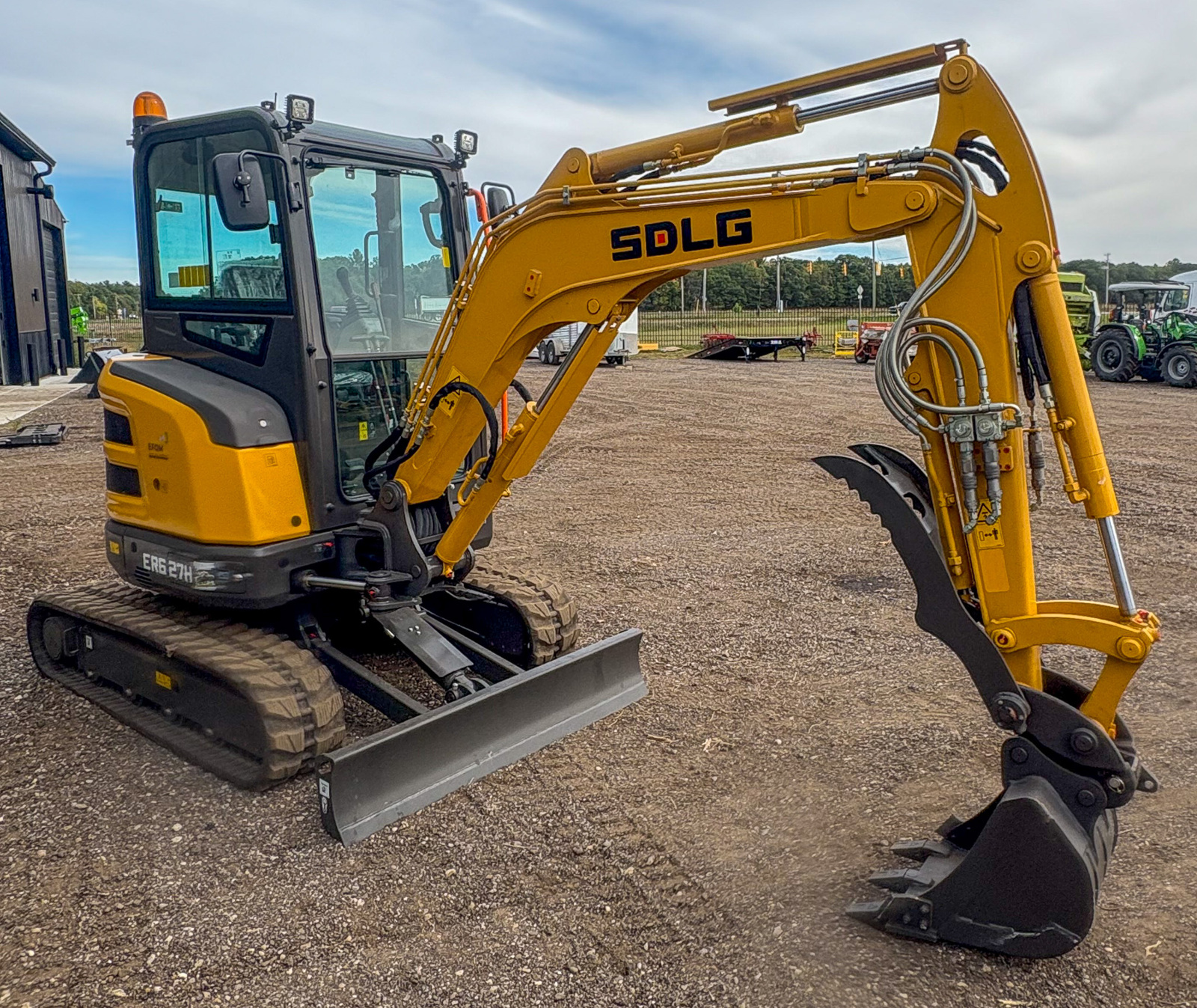

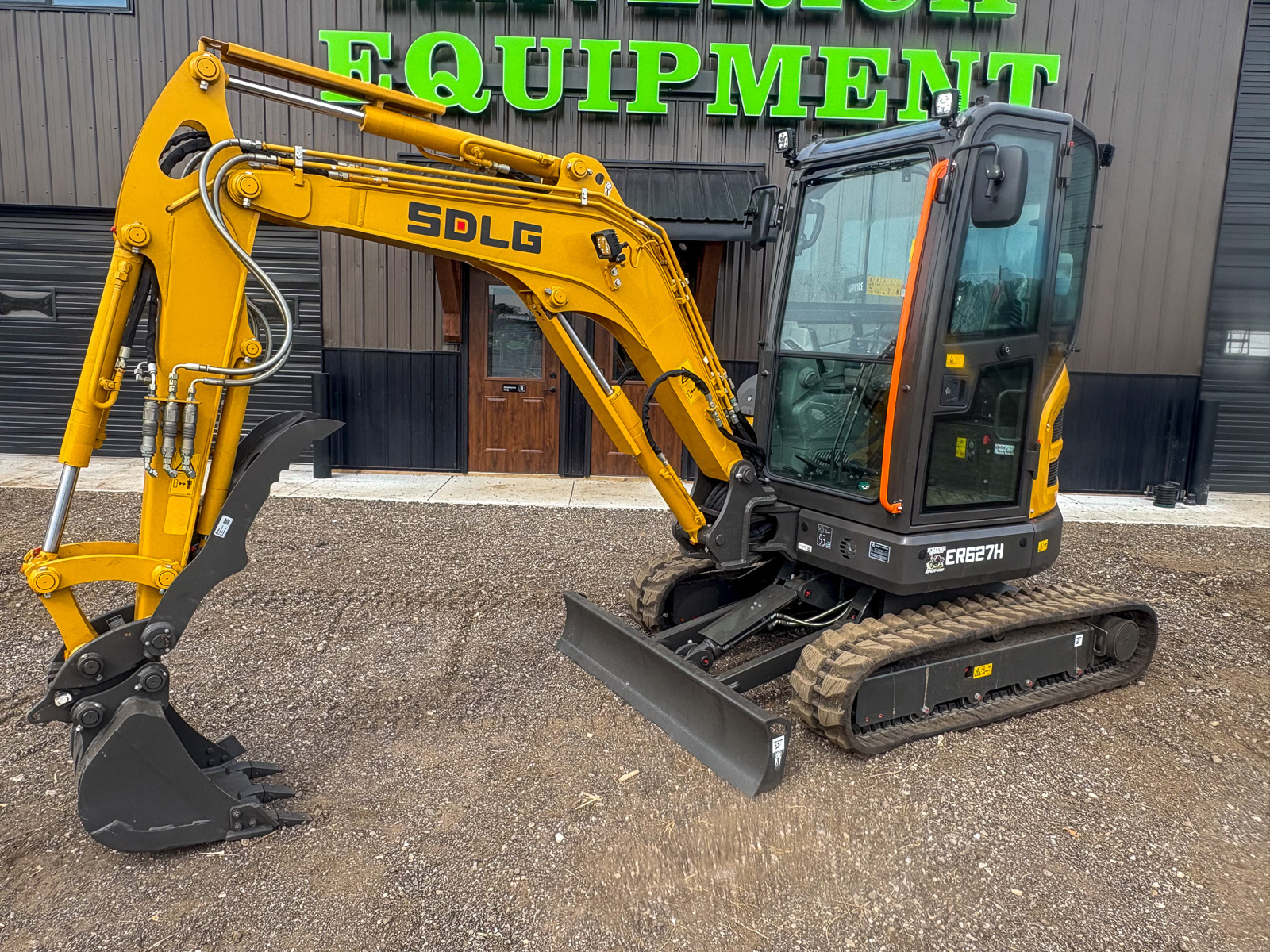

Rated power,kw (hp) 15.4(20.7)The ER627H is equipped with Kubota engine delivering strong power, exceptional break out force, great handling performance, and smooth and effortless command of the boom offset and swing which is ideal for working in confined spaces.
Standard machines have X1/X3 pipelines, meeting a wide range of attachments.
Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
Equipped with a mechanical suspension seat, which is comfortable and prevents fatigue.
ROPS certified cab with double rearview mirrors and three LED work lights.
Filters are centrally located, providing easier maintenance.
| Technical Parameter | |
|
Operating weight,kg (lbs)
|
2950(6500) |
| Rated power,kw (hp) | 15.4(20.7) |
| Engine model | Kubota D1105 |
| Rated engine speed,rpm | 2400 |
| Displacement,ml (in³) | 1123(68.5) |
| Pump capacity,L/min (gal/min) | 70(18.5) |
| Main relief set pressure,bar (psi) | 240(3480) |
| Max. digging force of bucket,kN (lbf) | 24(5395) |
| Max. digging force of arm,kN (lbf) | 14(3147) |
| Travel low speed,km/h (mi/h) | 2.3(1.4) |
| Travel high speed,km/h (mi/h) | 4(2.5) |
| Gradeability,° | 30 |
| Swing speed,r/min | 10.5 |
| Blade (width*height),mm (in) | 1550(61")*291(11.5") |
| Ground pressure,kPa (psi) | 27.9(4) |
| Fuel tank,L (gal) | 31(8.2) |
| Boom length,mm (ft in) | 2130(6'11.8") |
| Arm length,mm (ft in) | 1300(4'3.2") |
| Bucket capacity,m³ (yd³) | 0.06(0.08) |
| Overall shipping size,mm (ft in) | 4390(14'4.8")*1550(5'1")*2460(8'1") |
| A Max. digging reach,mm (ft in) | 4880(16'0.1") |
| B Max. digging reach on ground,mm (ft in) | 4760(15'7.8") |
| C Max. cutting height,mm (ft in) | 4410(14'5.6") |
| D Max. dumping height,mm (ft in) | 3140(10'3.6") |
| E Max. digging depth,mm (ft in) | 2860(9'4.6") |
| F Max. digging depth (horizontal 8ft),mm (ft in) | 2360(7'8.9") |
| G Max. vertical wall digging depth,mm (ft in) | 2100(6'10.7") |
| I Tail swing radius,mm (ft in) | 775(2'6.5") |
| J Min. front swing radius,mm (ft in) | 2240(7'4.2") |
| K Undercarriage length,mm (ft in) | 1995(6'6.5") |
| M Track width,mm (ft in) | 300(11.8") |
